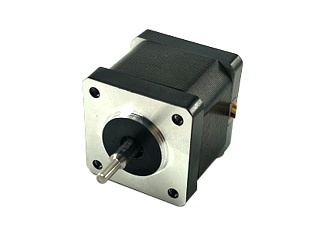

主要用途：監控設備，醫療儀器，工業自動化設備 Applications: Monitor equipment、Medical equipment、Industrial automation 機身長度范圍：20-52mm Length range: 20-52mm
基本性能
精度Accuracy | 步距角Step angle | ±5% |
電阻Resistance | ±10% | |
電感Inductance | ±20% | |
絕緣等級Insulation class | B | |
工作制Duty type | S1 | |
介電強度Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
絕緣電阻Insulation resistance | 100 MΩ/500V DC | |
技術數據
| 型號Model | 步距角Step Angle(Deg) | 電壓Voltage(V) | 電流Current(A) | 電阻Resistance(Ω) | 電感Inductance(mH) | 保持力矩Holding torque(Kg.cm) | 定位力矩Detent torque(Kg.cm) | 機身長Length(mm) | 重量Weight(Kg) | 相數Phases | 資料下載 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35HD34L050 | 1.8 | 10 | 0.5 | 20 | 14 | 1.4 | 0.2 | 27 | 0.15 | 2 |  |
| 35HD64L080 | 1.8 | 6.08 | 0.8 | 7.6 | 7.6 | 1.8 | 0.22 | 34 | 0.2 | 2 | |
| 35HD64L100 | 1.8 | 2.7 | 1.0 | 2.7 | 2.7 | 1.8 | 0.22 | 34 | 0.2 | 2 | |
| 35HD84L100 | 1.8 | 7 | 1.0 | 7 | 7 | 4.4 | 0.22 | 47 | 0.25 | 2 | |
| 35HD94L100 | 1.8 | 5.85 | 0.9 | 6.5 | 6.5 | 4.6 | 0.26 | 54 | 0.27 | 2 | |
● 機械尺寸Dimensions
● 接線圖Wiring Diagram
