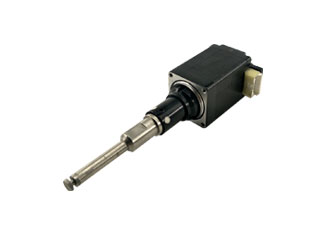

主要用途：醫療設備、半導體設備、閥門控制、X-Y工作平臺、手持式儀器 Applications: medical equipment、semiconductor handling、Valve control, X-Y tables、 hand held instruments 機身長度范圍:28-41mm Length range: 28-41mm
基本性能
精度Accuracy | 步距角Step angle | ±5% |
電阻Resistance | ±10% | |
電感Inductance | ±20% | |
絕緣等級Insulation class | B | |
工作制Duty type | S1 | |
介電強度Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
絕緣電阻Insulation resistance | 100 MΩ/500V DC | |
技術數據
| 型號Model | 步距角Step Angle(Deg) | 電壓Voltage(V) | 電流Current(A) | 電阻Resistance(Ω) | 絲桿直徑Screw diameter(mm) | 絲桿導程Screw lead(mm) | 絲桿長度?Screw length(mm) | 機身長Length(mm) | 重量Weight(Kg) | 資料下載 |
|---|---|---|---|---|---|---|---|---|---|---|
| 28ZD24P080-L2E-60 | 1.8 | 4.8 | 0.8 | 6 | 8 | 2 | 60 | 31 | 0.1 |  |
| 28ZD34L100-E2E-80 | 1.8 | 2 | 1 | 2 | 5 | 2 | 80 | 34 | 0.12 | |
| 28ZD34L100-H127E-100 | 1.8 | 2 | 1 | 2 | 6.35 | 12.7 | 100 | 34 | 0.12 | |
| 28ZD54L050-D254E-60 | 1.8 | 4.55 | 0.5 | 9.1 | 4.77 | 2.54 | 60 | 34 | 0.12 | |
● 機械尺寸Dimensions
● 接線圖Wiring Diagram
